equivaQ PDM Dashboard

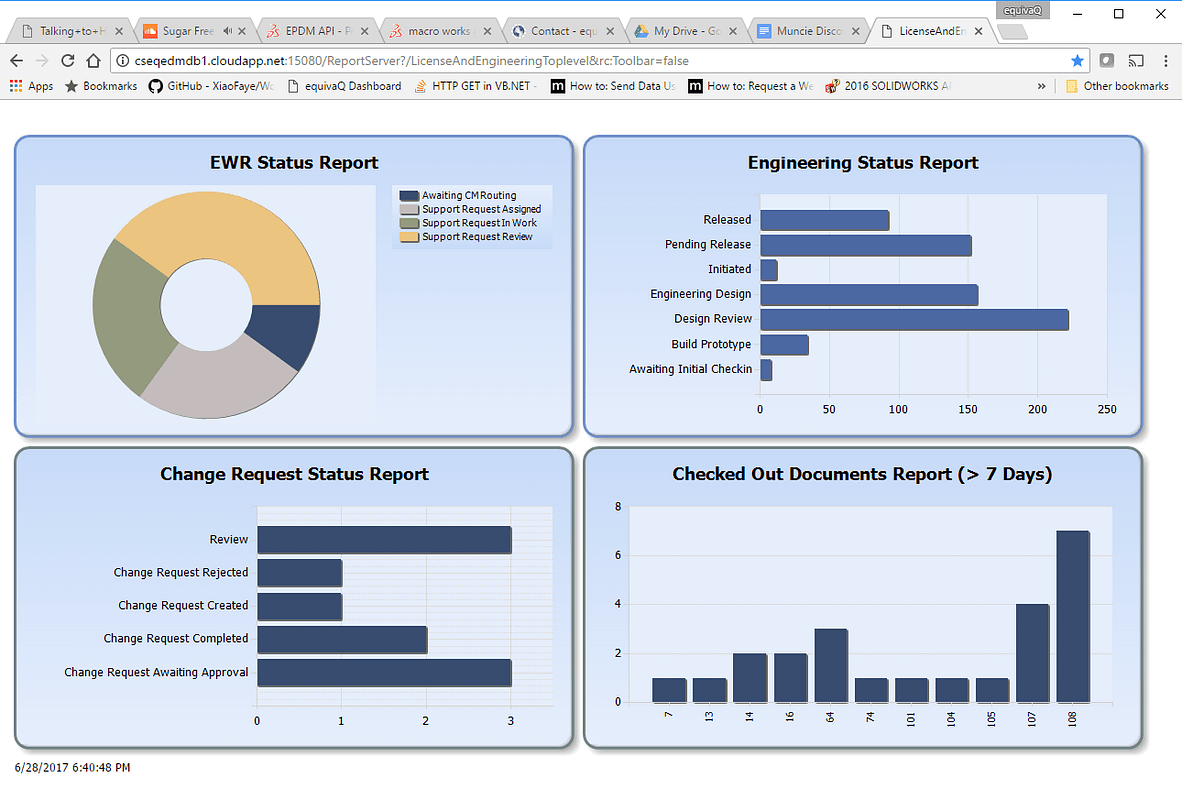

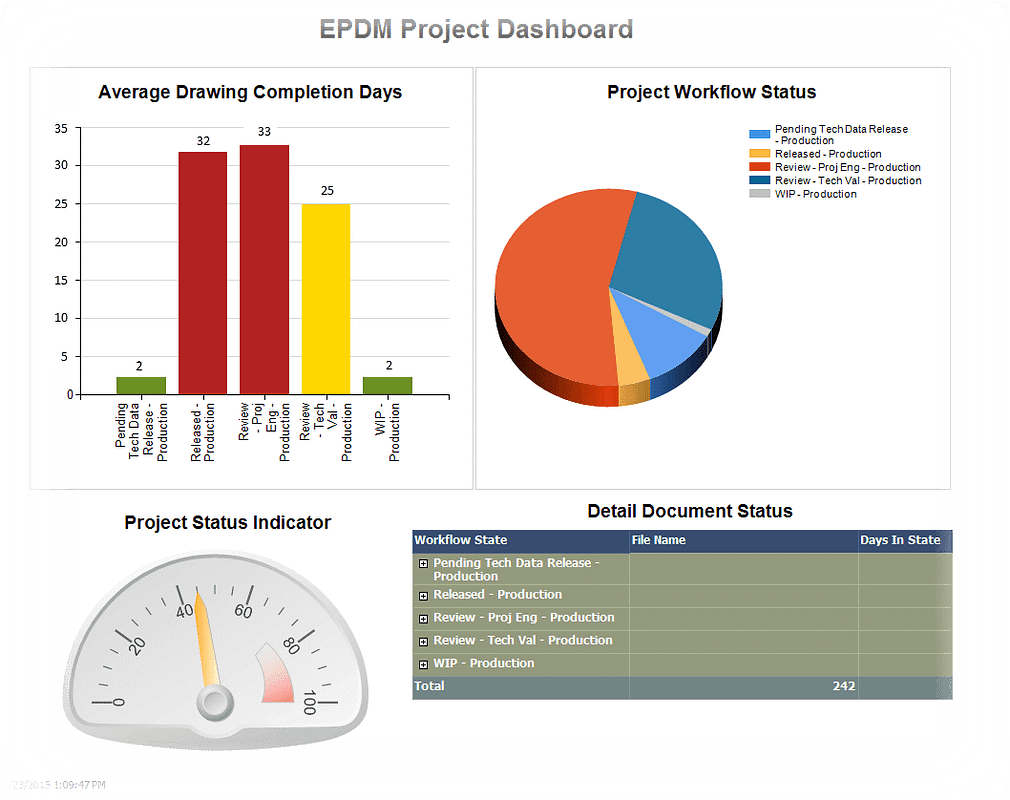

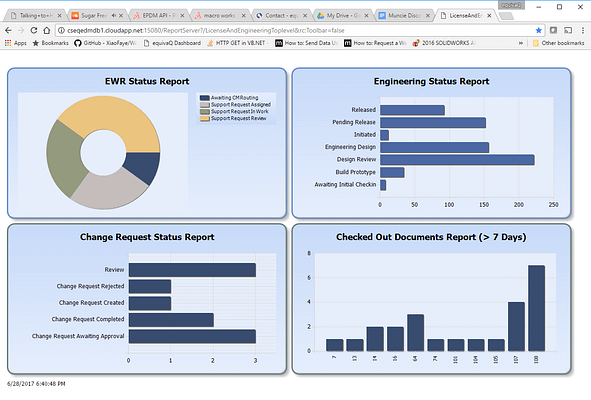

The equivaQ PDM Dashboard is a centrally located Intranet based chart(s) that graphically displays project data directly from your SOLIDWORKS PDM vault with interactive drill-down charts and Reports.

1. Visualize Performance
2. Focus Resources
3. Recapture Revenues

Features

• Graphically display the drawings in each workflow state for specific projects
• Customized chart types (ex. Column, Bar, Pie, etc.)
• Chart tooltips display number of files in each state
• Drill down through chart sections for detailed data
• Detailed data table displays data card fields (Part number, Description, Revision, etc.

Benefits

• Provide Leadership with high level project status at a glance so they can focus resources more accurately and deliberately
• Users can use the detailed data table hyperlinks to open the file in PDM as their daily “TODO list”
• Quickly see “days in state” to see project delays earlier in the project life cycle
• PDM administrators use the charts as a tool for cleaning up files in the wrong states and “dropped” data
• Data is stored in your own data warehouse to avoid taxing the main PDM database
• Chart data is automatically updated

SQL Data driven

Drill through capable

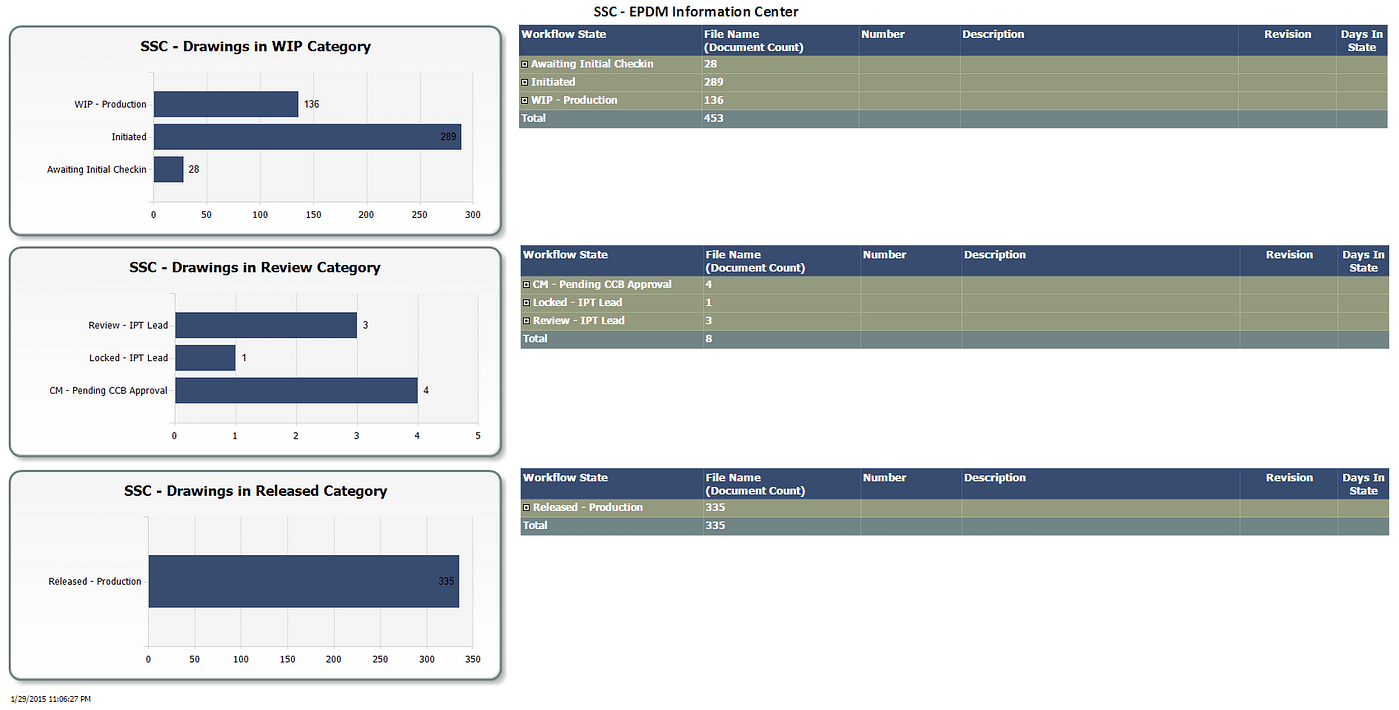

Detailed Categories

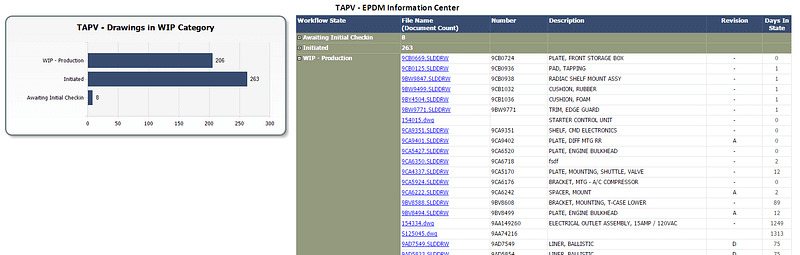

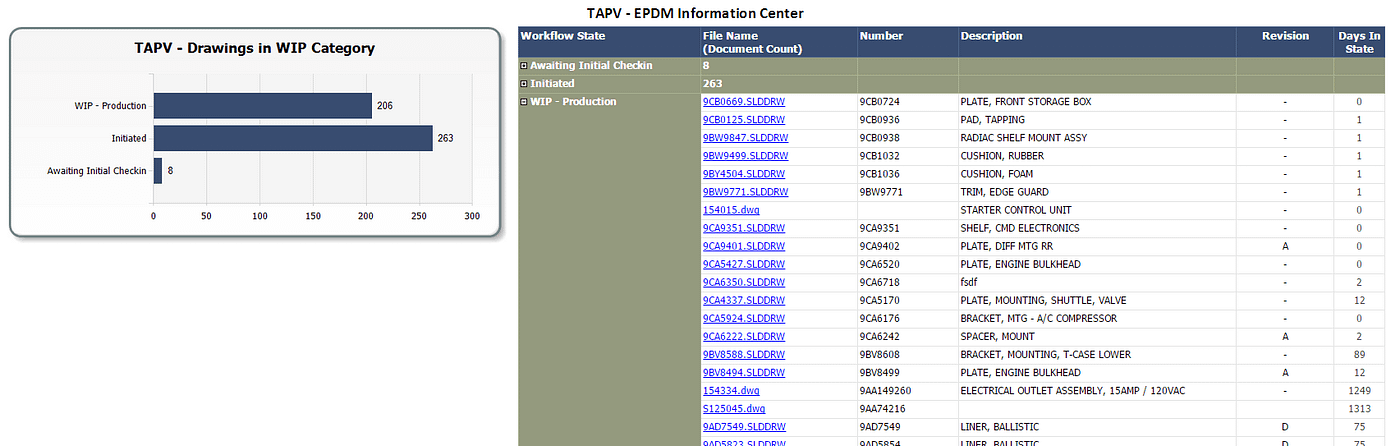

Detailed listing with Conisio links and dwell times
